Product Details
＋

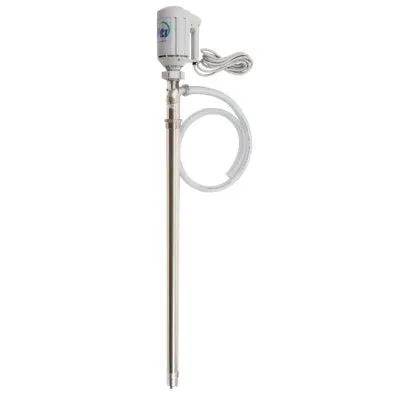

Dispense mild corrosives and non-flammable liquids from 275-gallon IBC totes with this high flow rate electric IBC pump system with steel pick-up tube.
- High-output, variable-speed motor (3,500rpm to 10,000rpm) offers outstanding flow control in a drip-proof design
- Pump motor is continuous duty rated for extended operation; motor shuts off if it runs too long or too hot and restarts only with manual safety reset
- Includes 48"- long stainless steel pump tube that fits 275-gallon IBC tote; handles temperatures up to 220° F
- Includes 5'- long reinforced PVC discharge hose with clamp
- Included IPS Adapter threads into bung opening to hold pump tube upright
| Use With | 275 gal. IBC Tote w/ 2" NPT Bung |
| Brand | Finish Thompson |
| Bung Opening | 2" NPT Bung |
| Compatible With | Mild Corrosives; Non-Flammable Solvents |
| Explosion Proof | No |
| Horsepower | .5 |
| Color | Gray/Silver |
| Ideal For | Corrosives; Solvents |
| Max Flow Rate | 20 gal./Minute |
| Max Viscosity | 500 CentiPoise |
| Power Cord | 12' w/ Plug |
| Powered By | Electric |
| Power Requirements | 110V/50-60 Hz |
| Speed | Variable Speed |
| Temperature Limit | Maximum Temperature 220°F (104°C) |
| Use With Flammables | No |
| Sold as | 1 each |
| Weight | 24.32 lbs. |
| Composition |
Motor: Steel, Plastic Pick-Up Tube Outer Shaft Material: 316 Stainless Steel Internals: ETFE, PTFE, Stainless Steel, FKM Hose: Reinforced PVC Drum Adapter: Stainless Steel |
| Includes |
1 - FTI .5 HP Electric Pump Motor (DRM432) 1 - 48" L FTI IBC PFS Pick-Up Tube (IBC004) 1 - int. dia. 1" x 5' L PVC Discharge Hose (DRM888) 1 - FTI IPS Adapter (DRM513) |
| UNSPSC | 40151529 |
| Pigalog® Page Number |
